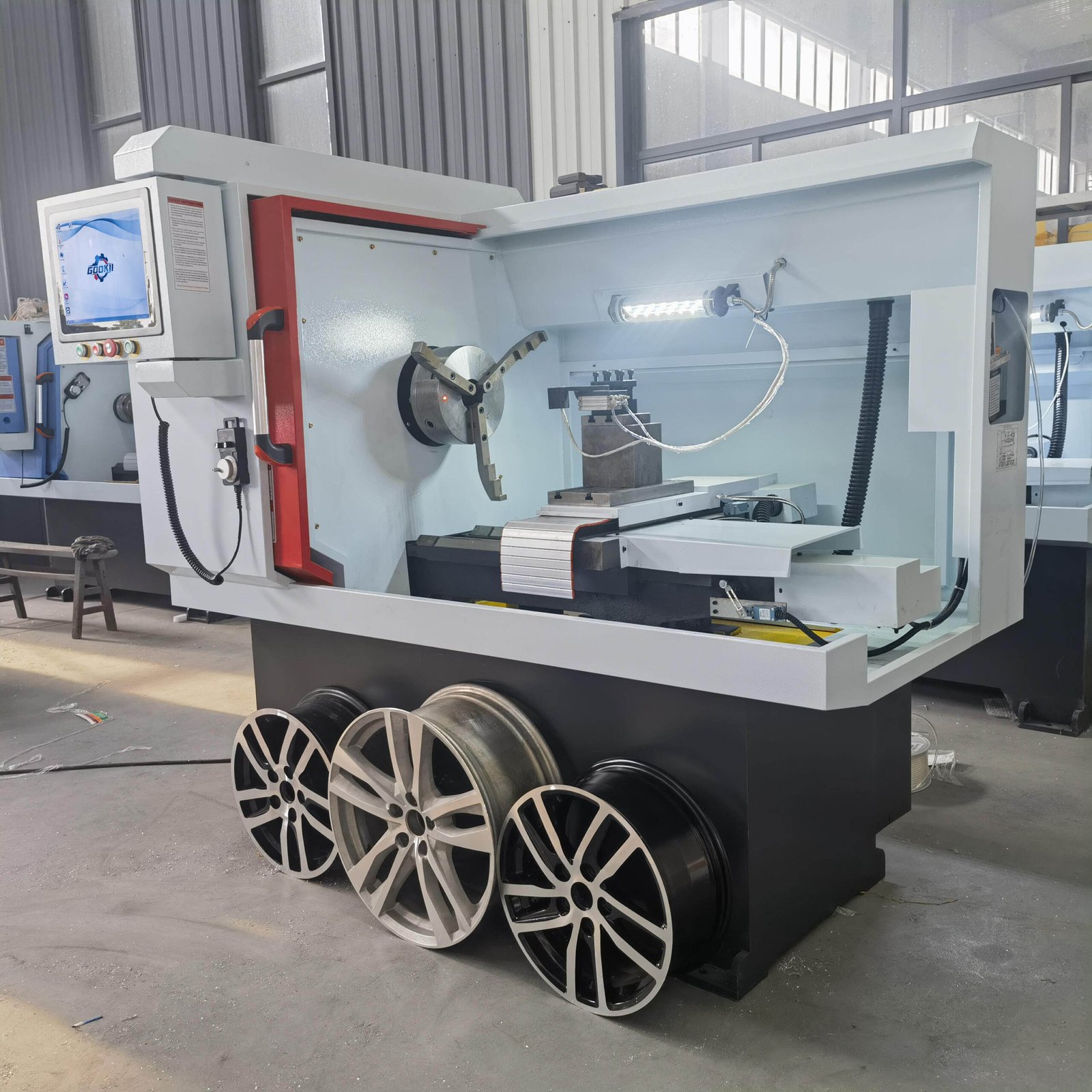

3 Jaw Rim Diamond Cutting Machine
Machine Specification
| Model No. | GT-RDCM30 |
| Colour | Red &White，Blue &White，Customizable |
| Scope of Use | Hub repair/Brake disc repair |
| Layout Form | Horizontal semi closed |
| Scanning Type | Laser scanning |
| Axis | X axis, Z axis |
| Running Motor | servo motor |
| X. Z-axis Controller | Handheld mobile pulse handwheel |
| Tool Material | PCD alloy |
| Tool Carrier | Fully automatic rotating tool rest |
| Spindle Speed Regulation | 0~1000 transition frequency adjustment |
| Spindle Rotation Diameter | 650mm (25 inch), 710mm customizable |
| Control Panel | 15 inch touch screen |
| Operating Language | English |
| Material of Lathe Body | Integrated casting |
| Voltage | 220V / 380V |
| Power | 7 KW |
| Machine Size | 1,700*1,450*1,650mm |
| Package | Non fumigation wooden box packaging |
| Package Size | 1,800*1,550*1,800mm |
| Package Weight | 1,200 KG |
List of Accessories
| Name | Quantity | Name | Quantity | |
| Center bar | 1 SET | Taper disc | 1 SET | |
| Lock nut | 1 SET | T-type hub set screw | 10 SET | |
| 19 # socket wrench | 1 SET | L-type wrench | 1 SET | |
| Counter cutter bar | 1 SET | Positive cutter bar | 1 SET | |
| Tool | 6 SET | Straight cutter bar | 1 SET | |
| Inner hexagon spanner | 1 SET | Slotted screwdriver | 1 SET | |
| Cross screwdriver | 1 SET | Open end wrench | 2 SET | |
| Hold-all | 1 SET |
Machine Functions
| Auto scan hub curve |
| Automatic identification of various hub arcs |
| The hub arc curve can be repaired automatically or locally |
| Automatic feed cutting |
| Automatic anti-collision |
| Automatically return to the starting point after scanning |
| Brake disc repair |
| Wheel hub auxiliary polishing |
| Auxiliary electronic tool setting instrument |
| Laser automatic rotation bracket |
| Automatic tool setting of equipment |
| Automatic processing |
| Automatic monitoring of processing data |
| Scan cut hyperbola contrast function |
| Start point and end point automatic extension function |
| The automatic alarm function of machining curve monitoring prevents the hub from being damaged due to machining errors |
